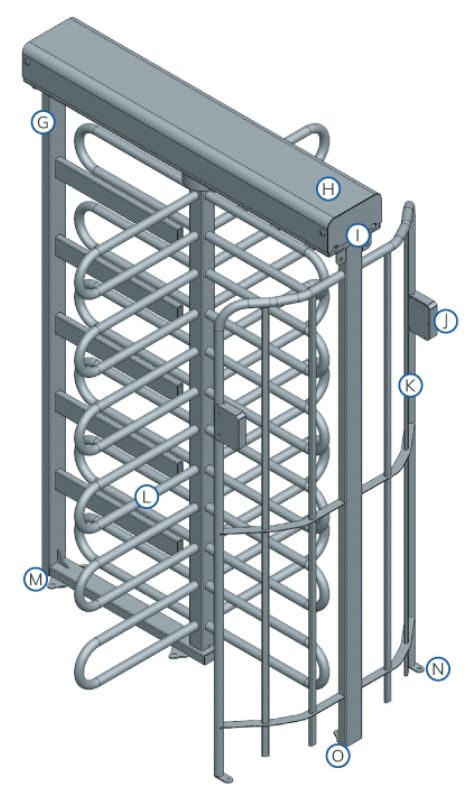

4-Arm Full Height Turnstile
Engineered and manufactured by SPE, the 4-Arm Full Height Turnstile redefines reliable, secure, and seamless pedestrian access. Built for strength, safety, and performance, it combines mechanical precision with modern aesthetics, making it the ideal solution for high-traffic environments where security is non-negotiable.
From construction sites and factories to corporate campuses and stadiums, this robust turnstile is trusted to manage pedestrian flow with confidence and control.
Built by Engineers. Trusted by Industry.
Every turnstile is designed, fabricated, and tested in-house at our world-class manufacturing facility, ensuring uncompromising quality and durability, backed by over three decades of engineering expertise.
Why Choose SPE's 4-Arm Turnstile?
Engineered for Security
One-at-a-time entry with anti-reverse protection for controlled access.
One-at-a-time entry with anti-reverse protection for controlled access.
Bi-Directional Flow
Allows entry and exit, with seamless integration with Time & Attendance systems.
Allows entry and exit, with seamless integration with Time & Attendance systems.
All-Weather Performance
Built for both indoor and outdoor use. Dust- and moisture-resistant, with corrosion-resistant finishes available.
Built for both indoor and outdoor use. Dust- and moisture-resistant, with corrosion-resistant finishes available.
Aesthetic Meets Function
Clean, modern design that enhances security without compromising appearance.
Clean, modern design that enhances security without compromising appearance.
Low Power Consumption
Powered by efficient 24V electro-mechanical technology.
Powered by efficient 24V electro-mechanical technology.
Fail-Safe Operation
No mid-rotation locking during power failure. Backup batteries ensure uninterrupted access.
No mid-rotation locking during power failure. Backup batteries ensure uninterrupted access.
Turnstile Operation
The 4-Arm Turnstile ensures secure, bi-directional access. Once a valid signal is received from an access control system, the head mechanism unlocks, allowing smooth rotation. A built-in anti-passback mechanism prevents tailgating and reverse entry, locking the rotor if misuse is detected.
In the event of a power outage, our backup battery system maintains safe, functional access without the risk of trapping users mid-rotation.
Technical Specifications
| Power Supply | 220V AC, 50 Hz |
| Power Consumption | 50W |
| Logic Voltage | 24V |
| Solenoid Voltage | 24V |
| Backup Battery | 12V & 24V options |
| Rotor Configuration | 4-Arm, 90° |
| Material | Mild Steel |
| Finish | Polymer Powder Coated |
| Weight | 140kg |

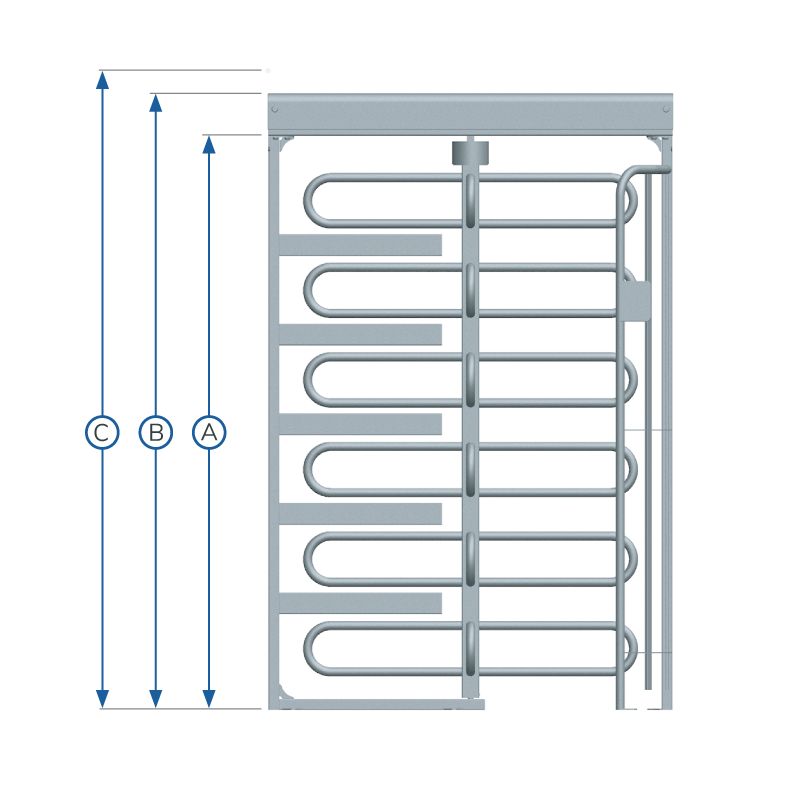

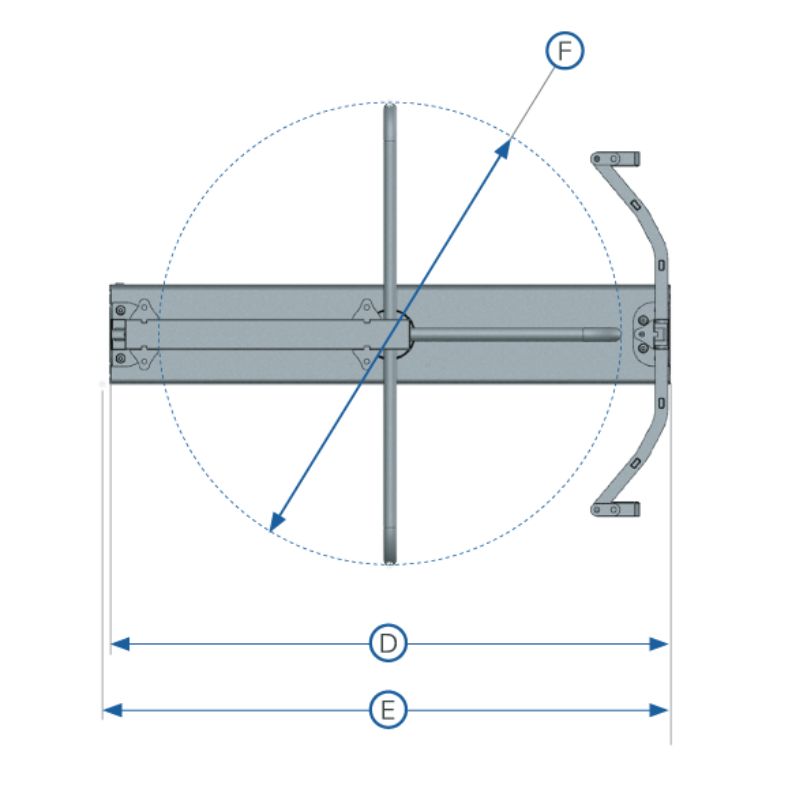

Dimension Measurement
[A] Headroom 1985 mm
[B] Overall Height 2135 mm
[C] Installation Height 2250 mm
[D] Overall Width 1405 mm
[E] Installation Width 1430 mm
[F] Rotor Diameter 1160 mm
Versatile Access Control That Works Where You Do
Engineered to thrive in high-volume, high-security environments, this turnstile performs wherever precision access control is critical. Trust SPE’s solution to help you manage personnel flow, prevent unauthorised entry, and maintain safety at scale.
Ideal for:
Warehouses & Distribution Centres
Construction & Mining Sites
Educational Institutions
Office Buildings & Campuses
Stadiums & Event Venues
Construction & Mining Sites
Educational Institutions
Office Buildings & Campuses
Stadiums & Event Venues
